Launch iCarScan vs M-Diag Plus vs EasyDiag Plus vs X431 iDiag

Posted on July 28, 2017 by sales

Launch scan tool any difference: Launch iCarScan vs Launch M-Diag Plus vs Launch EasyDiag Plus vs Launch X431 iDiag

Launch iCarScan	Launch M-Diag Plus	Launch EasyDiag Plus	Launch X431 iDiag

Free Download 8 Programs	Without Software	Free Download 2 Programs	Without Software
You can download Demo/Smart OBDII diagnostic software and 8programs for FREE on APP: – 5 car software – 3 special function software	Launch M-Diag scan tools never come with software in the package. It’s a device only. You need pay for software: $35 – $50 per software	You can download Demo/ EOBD diagnostic software and 2 programs for FREE. For more: $39.95 per software	Launch X431 idiag scanners come without software in the package. It’s a device only. You need pay for software: $66 per software
Android / iOS
English, Chinese, Spanish, French,Russian
OBD, CAN bus, and proprietary protocols of over70 car manufacturers and2, 500 car models
1.I/M Readiness Monitor 2.Read DTC’s 3.Clear DTC’s 4.Read Freeze Frame Data 5.Read and Graph Data Stream PID’s 6.Full System Scan 7.Actuation Tests 8.Special Functions: IMMO &Key programming,Oil/Servicereset, ABS bleeding,TPS throttlebody adaptation, Brake pads, Steering angle reset, Battery matching, DPF regeneration,Injector coding,Tire Pressure Warning Light Reset, Gear learning
American car List: USAFORD,Chrysler,GM.European Car List: ABARTH,BENTLEY,BENZ,BMW,BUGATTI,CITROEN,FERRARI,FIAT,JAGUAR ,LANCIA,LANDROVER,MASERATI,MAYBACH,MINI,OPEL,PEUGEOT,PORSCHE, RENAULT,ROLLSROYC,ROMEO,ROVER,SAAB,SEAT,SKODA,SMART,SPRINTER,VOLVO,VW,AUDI Asian Car List: ACURA,DAEWOO,DAIHATSU,HOLDEN,HONDA,HYUNDAI,INFINITI,JPISUZU, KIA,LEXU,LUXGEN,MAZDA,MITSUBISHI,NISSAN,PROTON,SSANGYONG,SUBARU, SUZUKI,TOYOTA Chinese Car List: QIRUI_TY,FLYER,HAOQING,CHANGCHENG,TRUMPCHI

How to install FORScanon Macbook Pro for ELM327

Posted on July 22, 2017 by sales

I have successfully got FORScan working for the latest mac os version sierra 10.12.1 using a macbook pro 2011

Firstly make sure you have the correct drivers installed for the ELM device. I am using ELM 327 USB v1.5 bought from here:

http://www.cardiagtool.co.uk/elm327-v15-plastic-obdii-eobd-canbus-scanner-without-ft232rl-chip.htmlIt’s $8 around.

I find there are ELS27 FORScan cables also available. Cables come with software:

http://www.cardiagtool.co.uk/esl27-forscan-for-ford-mazda-lincoln-mercury-vehicles.html

It’s $30 around. No need take risk to test software online.

I installed Driver Pack 1 & 2 from here: http://www.totalcardiagnostics.com/support/Knowledgebase/Article/View/19/0/how-to-install-elm327-usbbluetooth-on-mac-and-obd-software

Don’t use the Driver Pack 3 from the link above, instead you can find the drivers for your OS, which are kept up to date here: http://www.prolific.com.tw/US/ShowProduct.aspx?p_id=229&pcid=41

I used PL2303_MacOSX_1.6.1, after installation restart your machine

Follow Alchemyx’s steps but before you do step 4 you have to find out what your mac will name the ELM device:

Open terminal (cmd + space, type ‘terminal’, press enter) > Disconnect ELM from your mac and run:

CODE: SELECT ALL

ls /dev

This shows the current list of devices connected. Connect the ELM to your mac and run again:

CODE: SELECT ALL

ls /dev

Compare the two outputs, you are looking for one similar to tty.usbserial

If you find something other than tty.usbserial then replace tty.usbserial within step 4 of Alchemyx’s post:

CODE: SELECT ALL

ln -s /dev/tty.usbserial ~/.wine/dosdevices/com1
Next do step 5 of Alchemyx’s steps. If your struggling you may need to have a better understanding about wine. ‘.wine’ is a hidden folder. If you google how to show hidden folders on a mac you will be able to access this folder and continue with Alchemyx’s step 5, or you could do it through a bash script.

When you complete Step 5 and you are now showing hidden folders, you should revert your mac to hide the folders again.

At this point if you haven’t already download FORScan from the downloads page and save to downloads. Open terminal and ‘cd’ to the downloads folder. Once you are at the folder level you can run:

CODE: SELECT ALL

wine $FORScanDownload.exe
Change $FORScanDownload.exe to whatever your download name is. Run the installation as normal, no need to change any folder paths.

The penultimate thing is to ‘cd’ to wherever the wine folder of FORScan.exe is and then do:

CODE: SELECT ALL

wine FORScan.exe

You can create a script that will do this for you using Script editor.

Open script editor (cmd + space, type ‘Script Editor’, hit enter):

CODE: SELECT ALL

tell application “Terminal”
do script “cd ~/.wine/drive_c/Program\\ Files/FORSCAN
wine forscan.exe”
end tell

Save as .application to the desktop. Now you can run FORScan like a normal app on your mac.

Ultimately when FORScan is running on your mac go to the settings screen, hit connection tab then configure as per below:

FORScan-mac
Now connect ELM327 usbto your mac and your vehicle and then go to the initial screen and try to connect.

Job done!

XTOOL MINI iOBD2 Bluetooth Scanner

Posted on May 23, 2016 by sales

XTOOL recently released iOBD2 MINI Bluetooth Scanner; how much do you know that? Here, all useful information concerned are offered.

1. How to install iOBD2 app & adapter
1) iOBD2 app installation

supported device and application:
XTOOL iOBD2 mini Bluetooth scanner only supports wifi connection of Iphone, Itouch Pod, ipad with IOS 4.3 or later and Android OS 2.3 or later

-iPod touch: first/ second/ third generation
-iPhone: iPhone, iPhone 3, iPhone 3GS iPhone 4, iPhone 4s, iPhone 5?iPhone6,iPhone 6s,iPhone 6 plus,iPhone 6S plus
-iPad: iPad, iPad 2, iPad 3, iPad Mini

– All android smart phone and tablet

Installation of IOS version
–Install by smart phone
Open the App store, search iOBD2, download the app and install.
–Install by iTunes
Download and install iTunes. Then search iOBD2 on iTunes, download the app and install.

Installation of Android version
–Install by website
Open iOBD2 official website en.iobd2.com, download iOBD2 to the phone and install.
–Install by Google play store
Download Google play store. Search iOBD2 on Google play, download the app and install.

note:

When installing the app, please do not delete data or format memory card, otherwise it may lead to app installation failed.

When the install finished, click “open” to run the app (before running the app, please set Bluetooth connection, otherwise it cannot read the data); click “complete” to exit. The shortcut of iOBD2 will appear on the main screen when the app installed successfully. Click to open iOBD2 and the screen will show as follows.

2) iOBD2 Adapter connection
Plug the iOBD2 adapter into the OBD II port on the car; turn the ignition on without starting
the engine. The OBD II port is usually under the dashboard, but it may be different on different car models.

2. How to connect Bluetooth
1) Bluetooth Setting
-Bluetooth connection on iOS devices: Turn on Bluetooth on the mobile. Find iOBD2 device and connect.

-Bluetooth connection on Android devices: Turn on Bluetooth on the mobile. Find iOBD2 device and connect.
2) Connection
-Connection on iOS devices: When the Bluetooth is successfully connected, open the APP iOBD2 on the smart phone. Click Setting button, select Connection option. Diagnostics is not available unless the setting of hardware, connection and car information is correct.

-Connection on Android devices: When the Bluetooth is successfully connected, open the APP iOBD2 on the smart phone. Click Setting button, select connection mode. Diagnostics is not available unless the setting of hardware, connection and car information is correct.

3. What might happen when first use iOBD2 scanner?
Sleep Mode

When iOBD2 is power on for the first time, if it does not communicate with the car within Waiting Time, and battery voltage is below the Limiting Voltage, it will go to sleep mode. The default waiting time is 15 minutes. This parameter can be modified.

When the battery voltage is below the Limiting Voltage and within 5 minutes there is no communication between iOBD2 and the car, iOBD2 will go into sleep mode. When the battery voltage is above the Limiting Voltage, it will wake up. The default Limiting Voltage is 12.6V. This parameter can be modified. When iOBD2 is connected with the car for the first time, you can diagnose the car within 15 minutes. If there is no any diagnostic operations over 15 minutes, iOBD2 will automatically go into sleep mode. Only when the battery voltage is above the Limiting Voltage, or the actual waiting time is shorter than the setting Waiting Time, can iOBD2 wake up.

4. Diagnose
This function includes the following testing items. After finish each item, click the APP interface and save the data so that you can review the history record later.

[Trouble code]: Reads the current DTC with detailed information on reasons lead to the DTC and advice to repair
the car.
[Live data]: Reads all the running parameters related to the ECU.
[Freeze frame]: ECU will set DTCs and record the data stream of the car engine at the moment when emissions
related faults occurred. The data is called freeze frame data.
[Readiness test]: Shows the status of readiness test. Click Readiness test in the menu, the screen will display the
test status of the car.
Supported and complete: It means the car supports this test and has completed.
Supported but incomplete: It means the car supports this test but it is not yet completed.
Unsupported: It means the car does not support this test.
[Vehicle information]: Read vehicle info such as Vehicle Identification Number (VIN), Calibration IDs (CALID) and
Calibration Verification Number (CVN).
[O2 Sensor test]: This service is to allow access to the on-board oxygen sensor monitoring test results. The same
information may be obtained by the use of [Mode 6 test].
[On-board Monitor Test]: To monitor the operation of the system of external device control panel.
[Component Test]: Allowed to access a particular component / the diagnostic monitoring results of incontinuous
monitoring system. E.g., the monitoring of the catalyst and evaporation system

5. My Dashboard
[My dashboard] function includes:
[Idle mode]: engine rotational speed, water temperature, battery voltage, air-intake temperature, instant fuel consumption (static), average fuel consumption

[Cruise mode]: vehicle speed, the current engine load, water temperature, vehicle traveled time, vehicle travel average speed, continuous running mileage, instant fuel consumption (dynamic)

[Sport mode]: engine rotational speed, vehicle speed, water temperature etc.

[Custom mode]: allows changing live data with preferred readings such as power, torque, horsepower, etc.

6. Performance Test
[Performance test] function includes:
[Accelerate/Decelerate test]: Test acceleration/deceleration process time and distance.
[0 to 400m acceleration test]: Test spending time from 0 to 400 meters.

7. Performance Graph
[Rpm – km/h] displays directly the vehicle’s speed and the revolutions by curve
[Rpm – Nm – kW] displays the revolutions, torque and power by curve

8. Setting
It allows users to set the language, connection, unit, and Alarm. In the vehicle setting, user can change parameters such as weight, fuel consumption coefficient, speed coefficient

9. History
It is to save and review the recorded diagnostic data of the tested cars, such as live data, freeze frame data and my dashboard data.

10. Trip Route
This function can track your driving route.
For iOS devices, select Setting on the phone, choose Privacy, Open the Location Services, and turn on iOBD2 interface. Run the iOBD2 app, choose “My dashboard”, and start driving the car, it will automatically track the driving route and save it on History menu. When exiting “My dashboard”, it will stop tracking the driving route. You can review the saved tracking route in History menu.

For Android devices, the trip route tracking is open by default. You can check the recorded trip route in the History menu. To open or close the trip route tracking function, you can click the Setting button and find the Track option.

11. How to update diagnostic software
Users can find out the latest software release information, download and install software by logging in to App store.
More information, please visit iOBD2 official site www.iOBD2.com

12. Cautions & Warnings for use
Please read following tips before you use iOBD2 adapter:
Please plug the iOBD2 adapter correctly into your car by following the installation
instructions before operating.When driving the car, please do not operate this unit. Any distraction may cause anaccident.
iOBD2 communicates with cars via Bluetooth. Please do not use this product in the places with strong electro-magnetic interference in order to ensure communication proper.
All information on this manual is based on the latest iOBD2 version. XTOOLTECH reserves the right to make changes at any time without notice.

Check more details:http://www.uobdii.com/wholesale/xtool-iobd2-mini-scanner.html

XTOOL iOBD2 work fine on Focus 2010

Posted on March 23, 2016 by sales

Write this review in a hurry and sorry for my screenshots, without too many skills. But i hope this can helps someone need mini OBDII scanner with Apple products, iPhone or iPad.

This is iOBD2 scanner i got from site here:

http://www.uobdii.com/wholesale/iobd2-diagnostic-tool.html

Nearly $55 with free shipping.

Connect to the OBD port under the dashboard

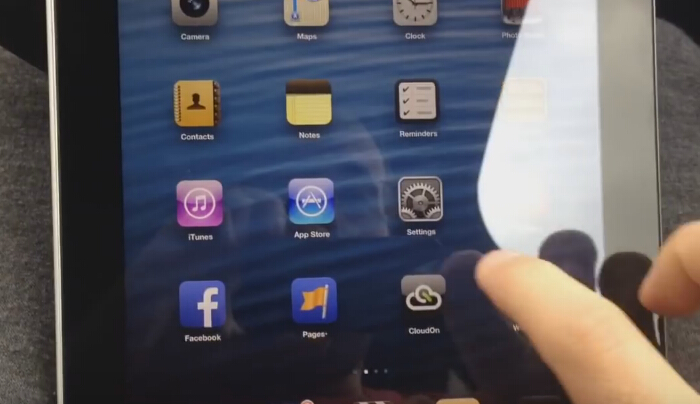

Open the Settings on Apple iPAD

Choose network- iOBD2

Read the Static

Open the iOBD2 application

I use iobd2 3.1 version interface

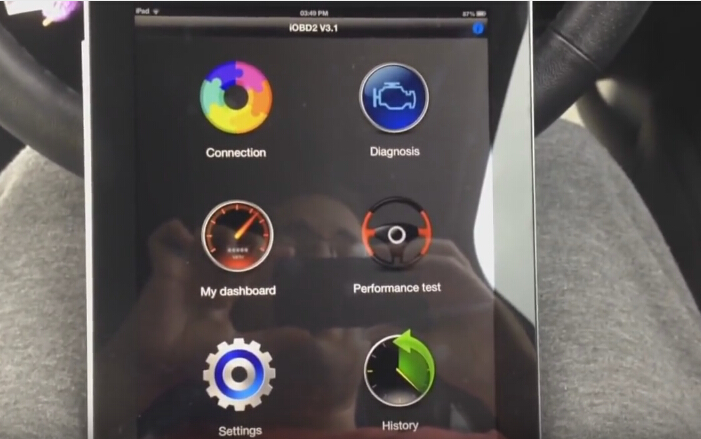

Main menu includes: connection, diagnosis, my dashboard, performance test, settings, history

Connection–> via WIFI

Finish vehicle information, my model: Ford Focus 2010 2.5L petrol

Connection complete

Then i first read Vehicle information

Turn the key on and ignition off.

VIN, Calibration ID, Calibration ID Number display

go to my dashboard

Focus dashboard here

What iOBD2 app display

Idle mode

Cruise mode

Sport mode

Customer mode

Then go to diagnosis

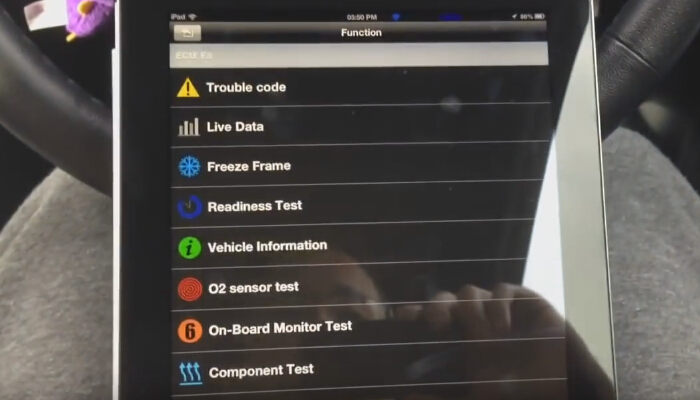

Diagnostic function list

Choose trouble code, no trouble codes but pending codes there: P0420

Clear trouble codes

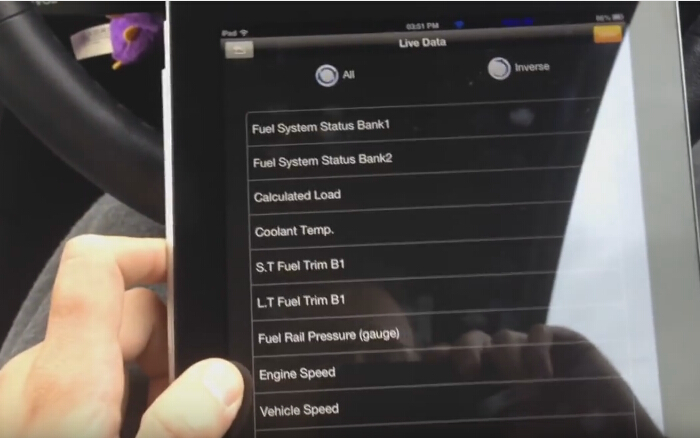

Back to read live data

Here i read live data of O2S B1, S2

Back to do O2 sensor test

Both Bank 1 sensor 1 and bank 1 sensor 2 not supported!

Back to freeze frame, no freeze frame data exist!

Go to On board monitor test

Test on Exhaust gas sensor monitor b1s1

Test on Exhaust gas sensor monitor b1s2

Choose Settings->system unit

That’s all what i did with the iOBD2 interface on Focus!

(thanks Farid Louma to write this review. Many thanks)

Rev and DashCommand iOS app, which is better for OBD?Scanner

Posted on April 24, 2015 by sales

There are a couple of iOS apps that wirelessly connect to ELM327 OBD scan tool through an ad hoc network (WANET). The two most highly rated iOS apps appear to be Rev and Dashcommand. But which is the best to work with these OBD scanners? Let’s explore it.

NOTE:

Torque Pro is an Android based app to work with Bluetooth ELM327 adaptors.

Rev:

Rev is an application for the iPhone and iPod Touch to work with wifi elm327 scanners that monitors, displays, and records real-time vehicle data by communicating directly with your vehicle’s ECU via its OBD-II port.

Rev can monitor and record several vehicle metrics in real-time:

Detect Engine codes

Readiness Monitors

Freeze Frame Data

Vehicle Speed (including 0-60 time)

RPM

Fuel Consumption

Engine Coolant Temperature

Fuel Pressure

Car battery voltage

*Supported metrics are specific to vehicle make and model.

What Rev app cannot do:

Do not read VIN

DashCommand:

DashCommand is a touch screen friendly software app for iPhone and iPod touch and is designed to work with wifi OBD2 interfaces.

Detect Engine codes

Readiness Monitors

Freeze Frame data

Vehicle Speed (including 0-60 time)

Display live data (Timing,Coolant temp,MAP,Lambda,AFR,O2 Sensor,Intake temp, Ambient Temp, Catalyst temp, MAF, and Fuel Pressure etc)

RPM

Detect horsepower, torque or acceleration in real time

Monitor and improve your gas mileage

Fuel consumption

Skid pad

Race Track

Inclinometer

The Difference between Rev and DashComand based on customer’s feedback:

1) Rev app can read and clear DTCs. But DashCommand with OBD cable can read faults codes but cannot clear them.

2) DashCommand seemed to be a little better with real RPM’s, intake temps, coolant temps, timing, MAF, and MAP

3) DashCommand seems to be working harder to add nice little touches and features to their app. It support frequently update.

4) DashCommand has more live data options than Rev app.

5) Rev is currently priced at $39.99

DashCommand can be free download at uobdii.com.

Free download DashCommand app:

http://down.uobdii.com/elm327-bluetooth-wifi-for-phone-system-software.zip

Following are some WIFI ELM327 OBD2 tool adapter available in uobd2:

WIFI ELM327 Wireless OBD2 Auto Scanner Adapter Scan Tool for iPhone iPad iPod

http://www.uobdii.com/wholesale/wifi-elm327-wireless-obd2-auto-scanner-adapter-scan-tool-for-iphone-ipad-ipod.html

WiFi OBD-II Car Diagnostics Tool for Apple iPad iPhone iPod Touch Support WiFi

http://www.uobdii.com/wholesale/wifi-obd-ii-car-diagnostics-tool-for-apple-ipad-iphone-ipod-touch-2185.html

VGATE WIFI OBD Multiscan ELM327 For Android PC iPhone iPad Software V2.1

http://www.uobdii.com/wholesale/vgate-wifi-obd-multiscan-elm327-for-android-pc-iphone-ipad.html

2014 Newest Vgate iCar 2 Bluetooth Version ELM327 OBD2 Code Reader iCar2 For Android/ PC (Six Color Available)

http://www.uobdii.com/wholesale/vgate-icar-2-bluetooth-version-elm327-obd2-code-reader.html

Launch x431 iDiag installation

Posted on April 2, 2015 by sales

X431 iDiag accessories have DBScar adapter, Auxiliary connector, Password envelope Protective casing(optional).In the following, it would use x431 iDiag for IPAD as an example, in order to better familiar with X431 idiag.

iPad protective casing:

DBScar adapter:

Place the connector in its place on the back of the protective casing when it is no in use. See the process as shown below.

iPad installation :

Put the iPad into protective casing. Follow the process shown in following picture to complete the installation:

DBScar adapter connection:

Find out the vehicle’s DLC socket, plug DBScar adapter into DLC socket and the DBScar adapter power indicator will light up.

Note: vehicle’s DLC socket is generally located on drive’s side, about 12 inches away from the center of dashboard, see the picture.If you can’t find it, please refer to vehicle’s repair manual.

iOBD2 OBD2 Bluetooth Adapter For iPhone Android

Posted on March 13, 2015 by sales

iOBD2, a combination of hardware and app that supports iPhone and Android.

It’s at least as powerful as most low cost on-board diagnostics readers, possibly more so. But it gets the job done in a much more user-friendly way and throws some extra features into the mix. Best of all, it connects wirelessly to your smartphone.

iOBD2

Diagnostic Functions

Support vehicles with OBD II/EOBD protocol.
Read DTC
Clear DTC
Read data stream
Read freeze frame data, vehicle information
Oxygen testing
Mode 6 testing
Evaporative Emission System Leak Detection

iOBD2 Products:

iOBD2 for iPhone

iOBD2 is a vehicle diagnostic tool for iPhone phones, and it communicates with these smart phones by WIFI. It supports OBDII/EOBDII.

iOBD2 Diagnostic tool for Iphone

iOBD2 for Android

iOBD2 OBDII EOBD Diagnostic Tool for Android By Bluetooth.Input the car models or select the saved car models, then enter the system

iOBD2 for Android

iOBD2 for iPhone/Android

iOBD2 Bluetooth OBD2 EOBD Auto Scanner for iPhone/Android with Bluetooth.It is an app for your car. It turns your iPhone/Android into an advanced display for your engine data.

iOBD2 Bluetooth OBD2 EOBD Auto Scanner Trouble Code Reader for iPhone/Android

iOBD2 BMW Diagnostic Tool for iPhone/iPad

iOBD2 BMW is one of iOBD2 code scanner series which is especially works on BMW car models.It works together with your iPhone or iPad which is IOS system, communication with your iPhone/iPad by Bluetooth/WIFI, support all BMW car models all system diagnose.

iOBD2 Diagnostic Tool for Android for VW AUDI/SKODA/SEAT

iOBD2 VW is a car diagnostic tool designed for VW series cars. It communicates with Android devices via Bluetooth. It can diagnose all the electronic

control systems of VW series cars.

iOBD2 Plug and Play

Install in iphone: Search “iobd2” in Apple APP store,download and install into your phone.

Install in Android: Search”iobd2″ in google play store,downlaod and install into you phone.

iobd2 code scanner

How to use X431 Auto IDiag on iPhone iPad IOS V8.0

Posted on February 12, 2015 by sales

X431 Auto Diag iOS requirements:

X431 Auto Diag works with iPhone / iPad/ iPod touch with IOS 8.0 or above IOS 8.0

Steps:

Step one: Install X431 IDiag software on IPhone.

Firstly, open Appstore on your IPhone, search X431, in the search result click one area to install, for example X431 china.

Step two: connect X431 IDiag diagnostic connector with car and iPhone/ iPad/ iPod touch

connect X431 IDiag diagnostic connector with car

Plug DBscar interface near the steering wheel as the following picture shows.

Open X431 IDiag , turn on the ignition of the car.

B, connect X431 IDiag diagnostic connector with iPhone/ iPad/ iPod touch

Open the Bluetooth of IPhone to search the device, the name of device Bluetooth is diagnostic connector serial number; to match Bluetooth does not need password.

Step three: register CC number

After connect well the diagnostic connector, open the diagnostic software installed in your iPhone (iPad iPod touch), click “settings” on the upper right corner to enter and register CC number, note: you could enter your email address as your user name, also you could register at http://www.dbscar.com/

Step four: connector registration

After login, click “connector registration” in the “settings”, (register X431 IDiag diagnostic connector into CC account). The diagnostic connector serial number will automatically get, if not, please exist the software and enter again or manually input the connector serial number ( the SN is marked on the DBScar connector). Click serial number and in the box of X431 IDiag you open the password letter to get the password. Finish registration as the following pictures shows.

Step five: Pay the software (you are allowed to pay on the PC)

After finish registering x431 IDiag, please click “get the software” (browse http://www.dbscar.com/), log in with the CC number and password, then go to the page for ordering the software, select the software according to the car model, you are available to buy multiple software as you want.

Step 6, Download the software

Click the diagnostic software to download, download the paid software and the free software (The OBDII software is free of charge).

Step 7, you are ready to use Launch IDiag to diagnose car models

Back to the page of car models selection, click the car model icon you paid. You are ready to diagnose. The following pictures show how deal with the southeastern cars.

Note: when the PLC program releases the newest version, the terminal will give priority to the update of the PLC program.

ELM327 Bluetooth WIFI for IOS, Android download and install

Posted on January 20, 2015 by sales

As known, elm327 OBDII code scanner communicate with the phone via Bluetooth / wifi, elm327 is compatible with Android , iPhone IOS and Symbian, to run with these system, users have to install the APP in the phone set Bluetooth and WIFI. To help users more easily find out the software and install software, uobd2 engineer upload the software for Andriod Torque, Apple IOS and Symbian OBDScope, as well as user manual.

http://down.uobdii.com/elm327-bluetooth-wifi-for-phone-system-software.zip

Next is to install Android Torque, Apple IOS and Symbian.

ELM327 Bluetooth OBDII for Android Torque installation

1.Install OBDII

2.Install Android Software Torque

a) Copy software to phone from CD

b) Install software

Connection OBDII

a) Search OBDII Bluetooth

b) Enter the password “1234”

c) Connection successful

Run Software

Click Menu button setting Bluetooth connection

a) Choose Commotion type is Bluetooth

b) Choose Bluetooth Device is OBDII

Successful connection

ELM327 Wi-Fi OBDII for Apple IOS installation

Install OBD2

2. Install IOS Software DashCmd-v3.3.1.ipa

Installation “DashCmd” via iTunes (IOS need jailbreak) or App Store Search “DashConnand” and buying.

3.Wifi connection OBDII

4.Run Software

Click connection

OBDScope Symbian Installation and activation

Open CD, copy OBDScope v1.21_S60_30_50.sisx to your mobile

Phone via Bluetooth. Install OBDScope v1.21_S60_30_50.sisx by following the prompt. It is recommended to uninstall the previous version of OBDScope before installing the new one.

You need not buy the activation key, in the CD, it contains a keygen.exe.

Activating OBDScope is done by following steps:

1. Open CD in my computer, directly run keygen.exe

2. Select OBDScope – Options – Activate product and look for the product key as displayed on Picture 1

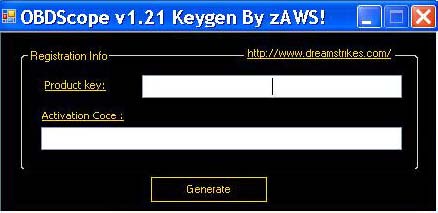

3. Input product key into keygen as displayed on the following picture.

OBDScope activation-01
